Exporting and Importing Machine definitions to and from HSMAdvisor
May 20, 2015, 9:35 pmArticle Summary
admin
May 20, 2015, 9:35 pm
February 1, 2023, 1:34 am
3903
Public
Author Summary
Thu October 10, 2024, 2:47 pm
Thu October 10, 2024, 2:47 pm
HSMAdvisor allows to import and export machine definitions, thus allowing you to use third-party definitions and share your custom ones with other HSMAdvisor seats.
Here is how you can Import and Export a machine definition:
To Import a new machine in to the active machine list
- Click on Edit button next to the Machine list on HSMAdvisor Speeds and Feeds tab
- Click on Import button on the "Machine Definition" dialog
- A standard windows "Open File" dialog appears prompting you to select a file that contains the machine you wish to import.
- After selecting a file and pressing OK, you will be asked to choose which machine you would like to import from the file. This is necessary because each file may contain many definitions.
- Find and select your machine in the drop-down list to make sure its parameters are correct.
- Click on Save button to save the changes and close the dialog

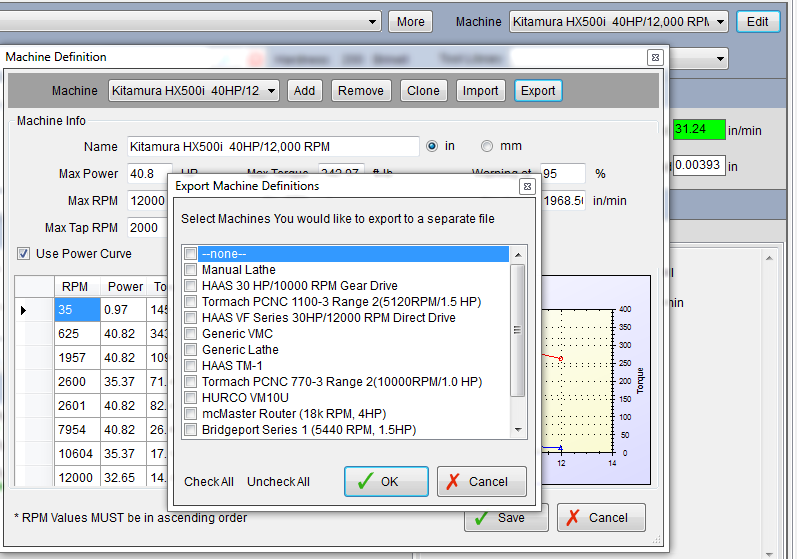

To Export a machine or many to an outside file
(to share it with your friends, coworkers, or maybe even me)
- Click on Edit button next to the Machine list on HSMAdvisor Speeds and Feeds tab
- Click on Export button on the "Machine Definition" dialog
- A dialog appears where you are prompted to choose which machines from your current list you would like to export.
- After selecting your machines, click OK and select a file name where you would like to save your machine list.
